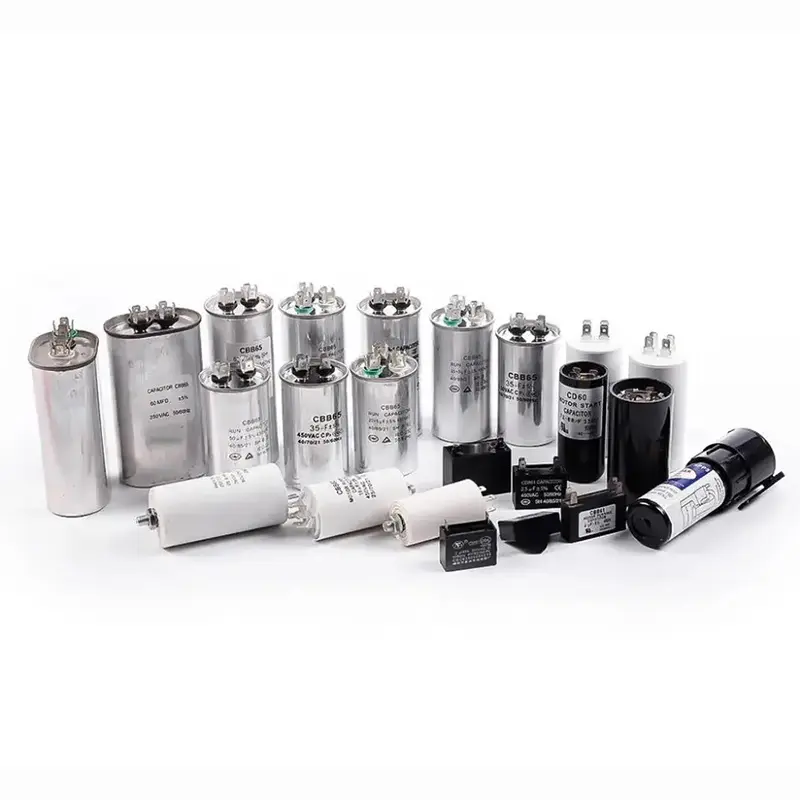

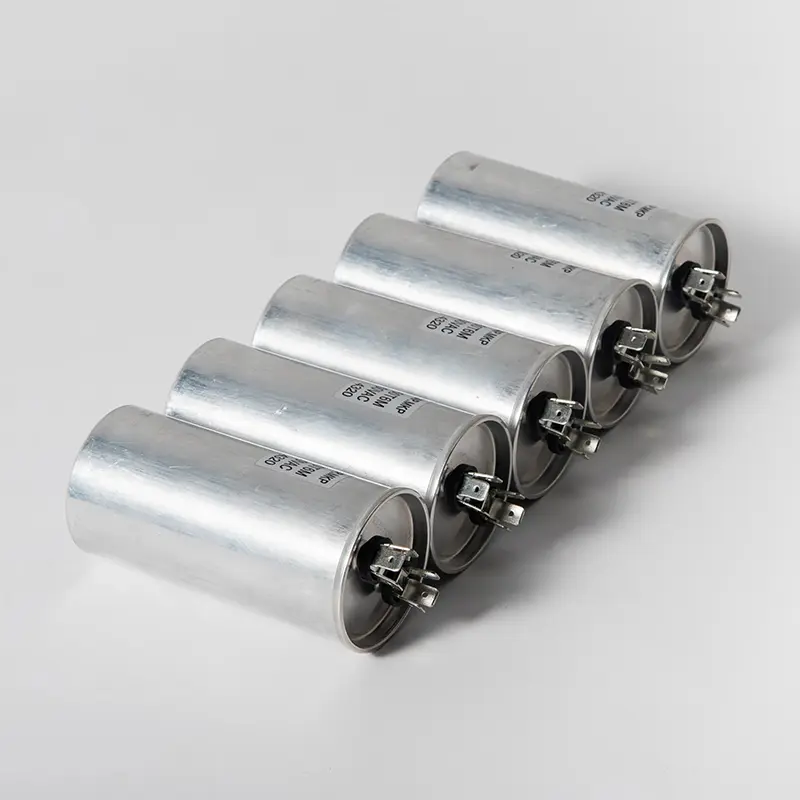

Capacitors Series Aluminum Electrolyte Capacitor Motor

Capacitors Series Aluminum Electrolyte Capacitor Motor - Image 2

Capacitors Series Aluminum Electrolyte Capacitor Motor

A capacitor is an electronic component used for storing and releasing electrical energy, playing a crucial role in the refrigeration system. It is mainly used to assist in the starting and operation of the motor of the refrigeration compressor. By providing additional current when the motor starts, it helps the motor overcome the resistance during the starting process and smoothly reach the normal operating speed. In addition, the capacitor can also improve the power factor of the motor and enhance the energy efficiency of the refrigeration equipment.

Application scenario

1. Refrigeration Systems
Refrigerators
Air conditioners

2. Industrial Fluid Control

3. Assistance in Maintenance Operations

Feature

1. Energy storage characteristics: It has good energy storage ability and can store and release a large amount of electrical energy in a short time to meet the energy requirements of the motor during the startup and operation of the refrigeration equipment.

2. Good voltage resistance performance: It can withstand the high voltage during the operation of the refrigeration equipment.

3. High stability: The performance parameters of the capacitor are relatively stable under different environmental conditions and working states.

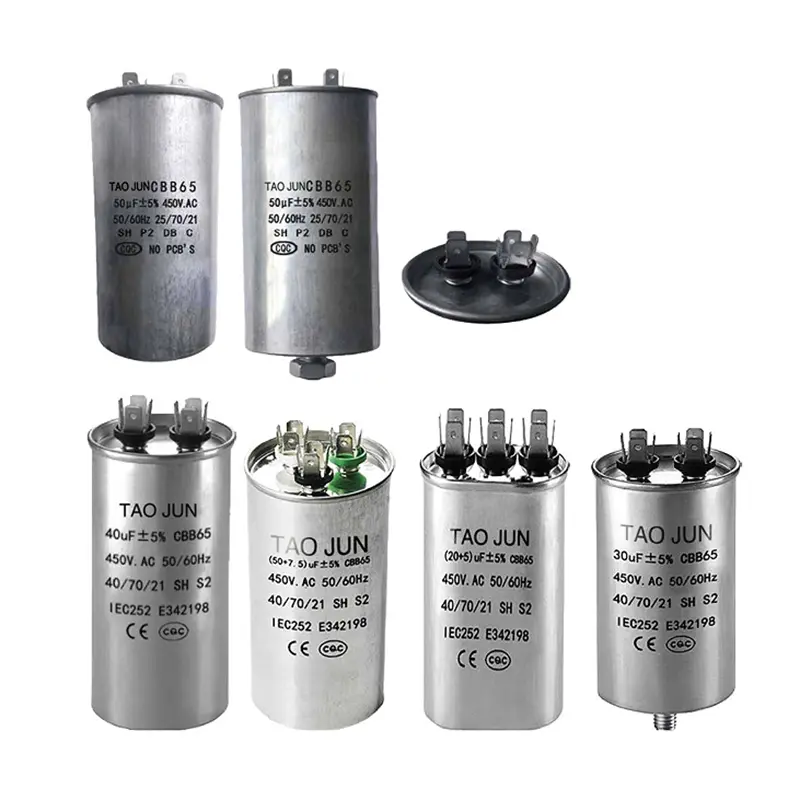

CBB65capacitor series

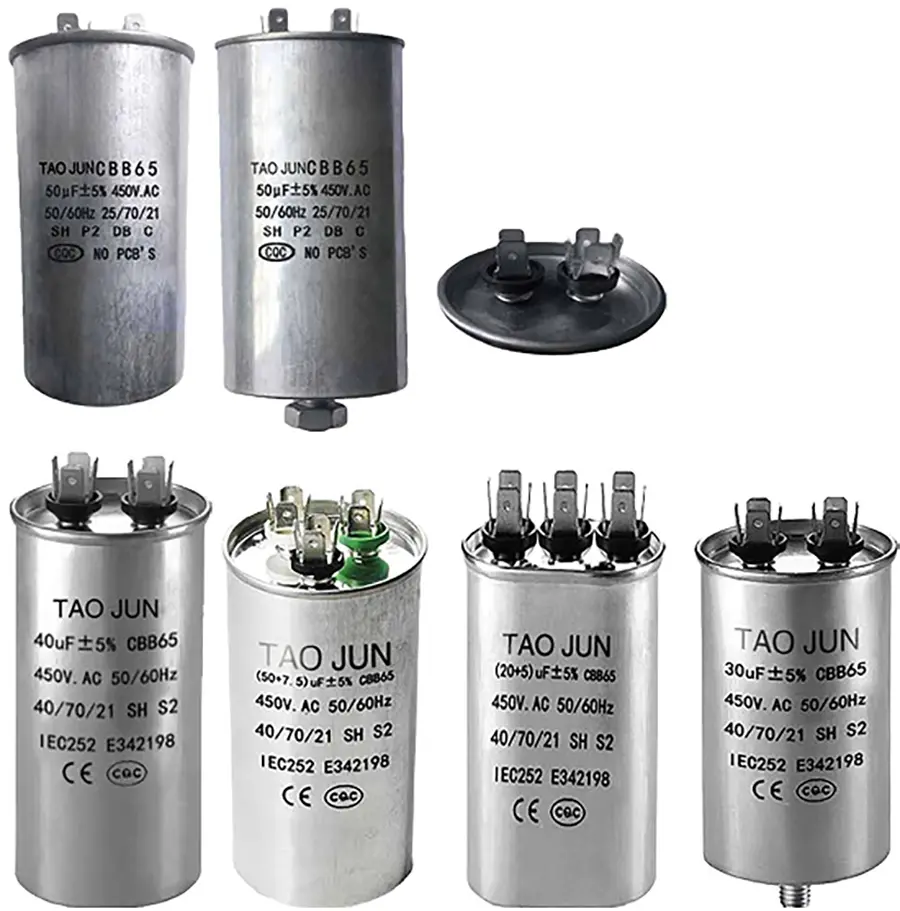

capacitor-series-5

Parameter

1. Capacity Range: 3uF~200uF

2. Allowable deviation:±5%(J)

3. Rated voltage:250V、300V、350V、400V、450V、500V、630V

4. Loss: tgÃ≤ 10×10-4(23℃，f=100Hz)

5. Insulation resistance: CxRs>3000S(23℃，100VDC，1min)

6. Power characteristics:Medium powerTemperature coeffcient

7. Temperature coeffcient:-40℃~+105℃

Application scope

Used for starting and operating single-phase motors powered by AC power sources with frequencies of 50Hz/60Hz, such as household air conditioners, as well as power factor compensation for high-power lighting fixtures.

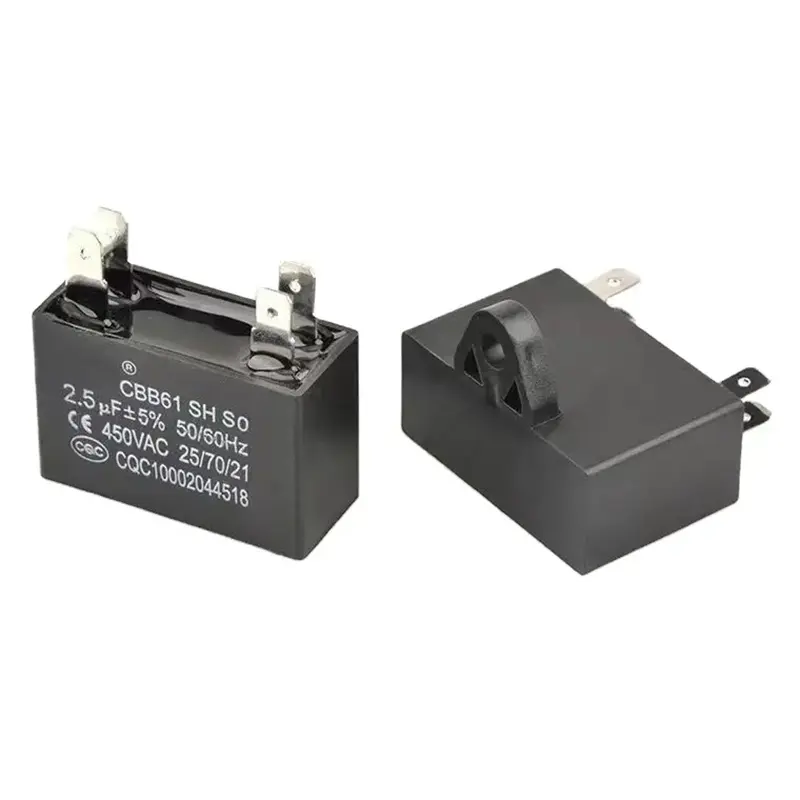

CBB61 capacitor series

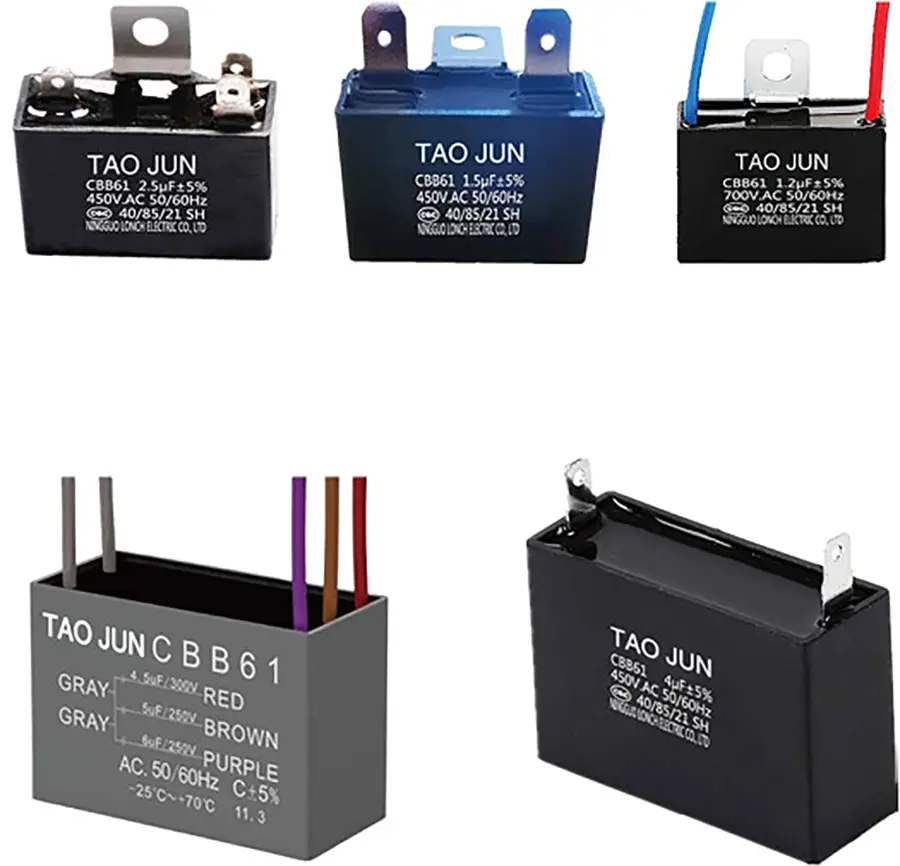

capacitor-series-6

Parameter

Capacity Range: 0.47μF~50μF

Allowable deviation: ±5%(J)、±10% (K)

Rated voltage: 250V、300V、350V、400V、450V、500V、630V

Voltage resistance value: 2.0Un(2s)

Loss: tgǒ≤10×10-4(23℃，f=100Hz)

Insulation resistance: CxRs>3000S(23℃，100VDC，1min)

Power characteristics: Medium powerTemperature coeffcient

Temperature coeffcient: -40℃~+105℃

Application scope

Suitable for the starting and operation of single-phase motors powered by 50HZ AC power supply, as well as machines that can regulate the speed of motors. It is an important supporting component for electric fans, range hoods, air conditioning fans, bread machines, and other devices.
